PL series planetary reducer

Product parameters

Transmission efficiency up to 96%

Noise below 65dB (A)

Minimum return clearance (<3 ')

Install anywhere

Simple motor assembly

More options

product details

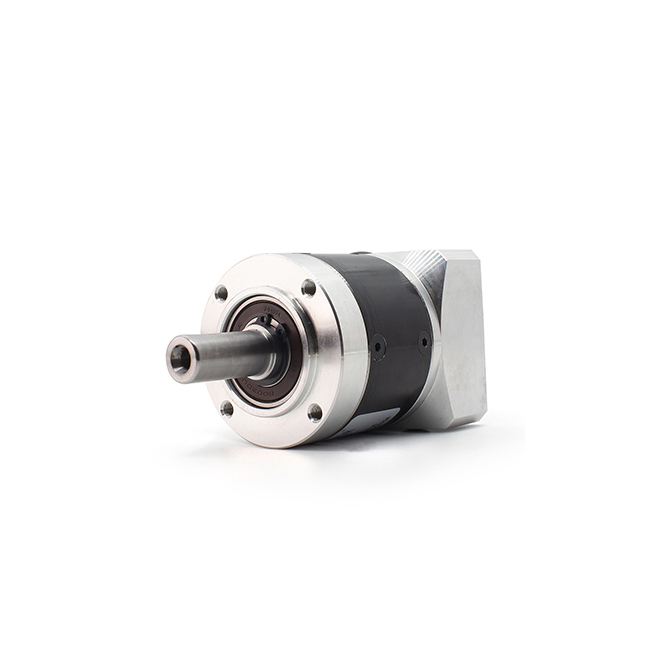

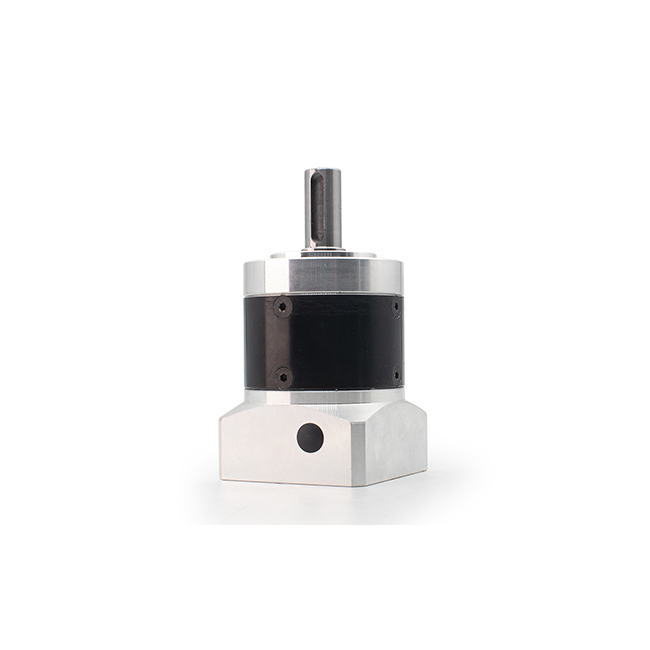

PL series
PL series

High precision planetary gear reducers are used in conjunction with servo motors and stepper motors in many control applications. Minimum return clearance (<3 '); High output torque; High efficiency (96%); Hardened teeth; 22 reduction ratios i=3, 512; Low noise (<65dB (A)); Install at any location; Simple motor assembly; External dimensions 40,60,80120160mm; More options available.

VR series

The high-precision planetary gear reducer adopts a helical gear design. Compared with previous straight teeth, the meshing of the gears is smoother and the noise is also reduced; Low return clearance (<3 '), especially during low pulsation rotation, fully demonstrating the superior performance of high-precision servo motors; Easy installation; After the combination of complete reduction ratios (single stage implementation of 3,4,5,6,7,8,9,10), there is more room for speed ratio selection.

VR series
PM series
PM series

The transmission type planetary gear reducer is combined with a brushed (brushless) DC motor to form a reduction motor, which not only reflects the high output and control characteristics of DC motors, but also has the high load-bearing torque characteristics of planetary gear reducers. The perfect combination of the two reflects the miniaturization and high torque of the product.
